Railway freight

TECHNI INDUSTRIE is a major player in the field of railway freight manufacture.

This «unrivalled » experience has enabled us to acquire unique expertise in railway freight design, manufacture, product support and assessment.

In addition to the controlled integration of outsourcing activities, we offer our own range of products that we export throughout almost all European Union countries.

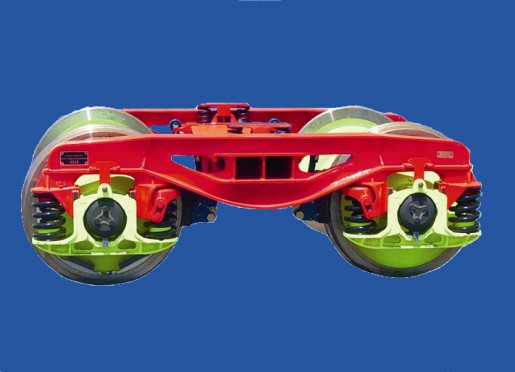

Bogie TI 2023 A4

TECHNICAL CHARACTERISTICS:


Axle load:
22.5 Tonnes.
Speed: 100 Km/h.
Gauge: UIC
Pivot height: 925(+3/-5).
Dimensions : 2767 x 2340.
Wheelbase: 1800.
Braking system: Classic linkage, 1Bgu amplification 2, 8 COFREN C810 or ABEX 333 shoes.
Weight: 4250 Kg.
Wheel Ø: 920 mm.
Track: 1435 mm.
S.N.C.F.  / R.E.N.F.E. validation : UIC 518 , 510-3, 432, 544-1. S.N.C.F.
Flexibility/Suspension height: 2.46 mm./T. up to 13.3 T. and 0.93mm./T. beyond.
Approval : CE (to STI/TSI)

Bogie TI 2023 A4 TI 2025 E TI 2025 D TI 2023 A2 TI 2023 A4 TI 2023 E Y25Ls(s) e Y25 Lsd1 Y25 Ls2-K Y25 Ls(s) Y25 Lsd2i Y25 Lsd2i (f) TI 2018 A TI 2020 A TI 2020 A1 TI 2018 C TI 2020 S TI 2025 E2 TI 2025 E3 TI 2025 E4
